Message Contract in WCF – WCF Service Tutorial

If you are new to WCF Service, please read my earlier blogs. WCF Introduction and WCF Contracts
As we know the default message protocol in WCF is SOAP. Message contract is used to define the SOAP structure. As we know SOAP has Envelope, Header, and Body.  So if you want control over SOAP then you must use Message Contract.

First, let’s see Data Contract Request and Response. Know more about  Data Contract in WCF



 [ServiceContract]
    public interface IProductService
    {
        [OperationContract]
        Product GetProduct(int ProductID);
    }
   [DataContract]
    public class Product
    {
        [DataMember]
        public int  ProductID
        {
            get;set;
        }
        [DataMember]
        public string ProductName
        {
            get;set;
        }
        [DataMember]
        public string ProductSeller
        {
            get;set;
        }
        public decimal ProductCost
        {
            get;set;
        }
    }


Service Implementation


public Product GetProduct(int ProductID)
        {
            Product objProduct = new Product();
            objProduct.ProductID = 10;
            objProduct.ProductName = “Laptop”;
            objProduct.ProductCost = 40000;
            objProduct.ProductSeller = “XYZ Seller”;
            return objProduct;
        }


You can see ProductID, ProductName and ProductSeller are only visible in Response why because we have not added DataMemeber attribute to ProductCost


Message Contract in WCF

How to implement Message Contract in WCF:

[ServiceContract]
    public interface IProductService
    {
        [OperationContract]
        [FaultContract(typeof(string))]
        ProductResponse GetInfo(ProductRequest Req);
    }
    [MessageContract]
    public class ProductRequest
    {
        [MessageHeader]
        public string PId;
    }
    [MessageContract]
    public class ProductResponse
    {
        [MessageBodyMember]
        public Product prdObj;
    }
     [DataContract]
    public class Product
    {
        [DataMember]
        public string ProductName { getset;}
        [DataMember]
        public string SellerName { getset; }

        [DataMember]
        public decimal Cost { getset; }
    }


Service Implementation:

public ProductResponse GetInfo(ProductRequest Req)
        {
            if (Req.PId != “P1”)
            {
                string x = “No Product exist with this ID”;
                throw new FaultException<string>(x);
            }
            ProductResponse res = new ProductResponse();
            res.prdObj = new Product();
            // create an object of Auther Class
            res.prdObj.ProductName = “Laptop”;
            res.prdObj.SellerName = “XYZ Company”;
            res.prdObj.Cost = 40000;
            return res;
        }

In above example, I have assumed default product id is P1

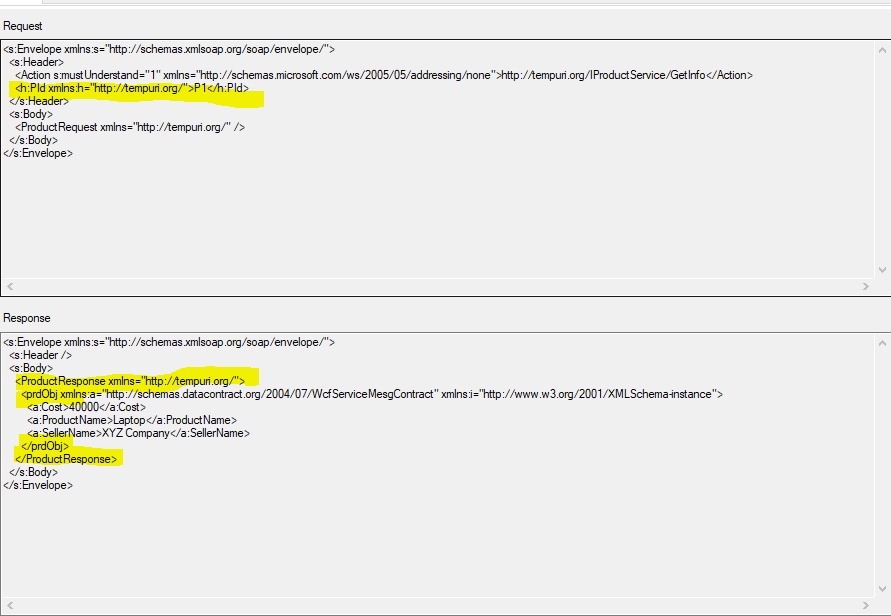

Now, run the service and see SOAP format below. You may notice Product Id P1 in header and Product Request in SOAP body section.

In response, you may notice Product Response in SOAP body section.
